Solareast Heat Pump Ltd. offers a reliable and efficient R32 swimming pool heat pump system.
Technical Date
| Model |
BYC-007TV1 |
BYC-010TV1 |
BYC-013TV1 |
BYC-017TV1 |
BYC-021TV1 |
BYC-030TV1 |
BYC-035TV1 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out |
| Heating Capacity (kW) |
7.2~1.7 |
9.2~2.3 |
12.5~3.0 |
16.5~3.8 |
21~4.8 |
28~6.8 |
35~8.8 |
| Power Input (kW) |
1.06~0.11 |
1.35~0.15 |
1.84~0.19 |
2.43~0.24 |
3.09~0.30 |
4.12~0.43 |
5.15~0.56 |
| COP |
15.8~6.8 |
15.8~6.8 |
16~6.8 |
15.8~6.8 |
15.8~6.8 |
15.8~6.8 |
15.8~6.8 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out |
| Heating Capacity (kW) |
5.9~1.4 |
7.4~1.9 |
9.5~2.3 |
13.1~3 |
16.5~3.8 |
23~5.5 |
25.5~6.4 |
| Power Input (kW) |
1.2~0.18 |
1.51~0.25 |
1.9~0.30 |
2.67~0.39 |
3.37~0.5 |
4.7~0.72 |
5.2~0.84 |
| COP |
7.6~4.9 |
7.6~4.9 |
7.6~5 |
7.6~4.9 |
7.6~4.9 |
7.6~4.9 |
7.6~4.9 |
| * Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out |
| Cooling Capacity (kW) |
4.2~1.0 |
5.3~1.3 |
7.2~1.7 |
9.4~2.1 |
11.6~2.7 |
14.9~3.8 |
19.3~4.9 |
| Power Input (kW) |
1.11~0.15 |
1.4~0.19 |
1.89~0.25 |
2.47~0.31 |
3.05~0.4 |
3.92~0.57 |
5.08~0.73 |
| EER |
6.6~3.8 |
6.7~3.8 |
6.7~3.8 |
6.7~3.8 |
6.7~3.8 |
6.7~3.8 |
6.7~3.8 |
| * General data |
| Power supply |
220~240V/1/50 |
| Max Power Input (kW) |
1.45 |
1.75 |
2.2 |
2.5 |
3.2 |
4.45 |
6.43 |
| Max Current (A) |
7.1 |
8.3 |
10.2 |
11.9 |
14.7 |
20.4 |
30 |
| Water Flow Volume (m3/h) |
2.5 |
3.5 |
4.5 |
5.5 |
6.5 |
9 |
12 |
| Refrigerant |
R32 |
| Heat Exchanger |
Titanium |
| Air Flow Direction |
vertical |
| Kind of defrost |
by 4 way valve |
| Working temp. range (℃) |
-15~43 |
| Casing Material |
ABS |
| Water Proof Level |
IPX4 |
| Noise level 1m dB(A) |
39~49 |
40~52 |
42~53 |
43~55 |
45~56 |
47~58 |
49~59 |
| Noise level 10m dB(A) |
20~29 |
20~32 |
22~33 |
23~35 |
25~36 |
27~38 |
29~39 |
| Net Weight (kg) |
44 |
46 |
55 |
57 |
61 |
86 |
92 |
| Gross Weight (kg) |
55 |
57 |
68 |
70 |
72 |
96 |
104 |
| Net Dimensions (mm) |
530*530*640 |
530*530*640 |
650*650*770 |
650*650*770 |
650*650*770 |
715*715*955 |
715*715*955 |
| Package Dimensions (mm) |
560*600*780 |
560*600*780 |
680*720*910 |
680*720*910 |
680*720*910 |
765*785*1080 |
765*785*1080 |
R32 Eco-Friendly Refrigerant Technology
Our R32 swimming pool heat pump delivers approximately 10% higher efficiency and 68% lower Global Warming Potential (GWP) compared to R410A refrigerant. This advanced natural refrigerant technology combines exceptional heating performance with environmental responsibility, ensuring reduced carbon footprint while maintaining optimal energy efficiency for sustainable pool heating solutions.
Wide Heating Capacity Range: 7-35kW
With heating output ranging from 7kW to 35kW, this versatile series accommodates various pool sizes and applications, from small private spas to large residential pools. This extensive capacity range ensures precise heating solutions tailored to your specific requirements, delivering optimal performance and energy efficiency regardless of pool dimensions or heating demands.

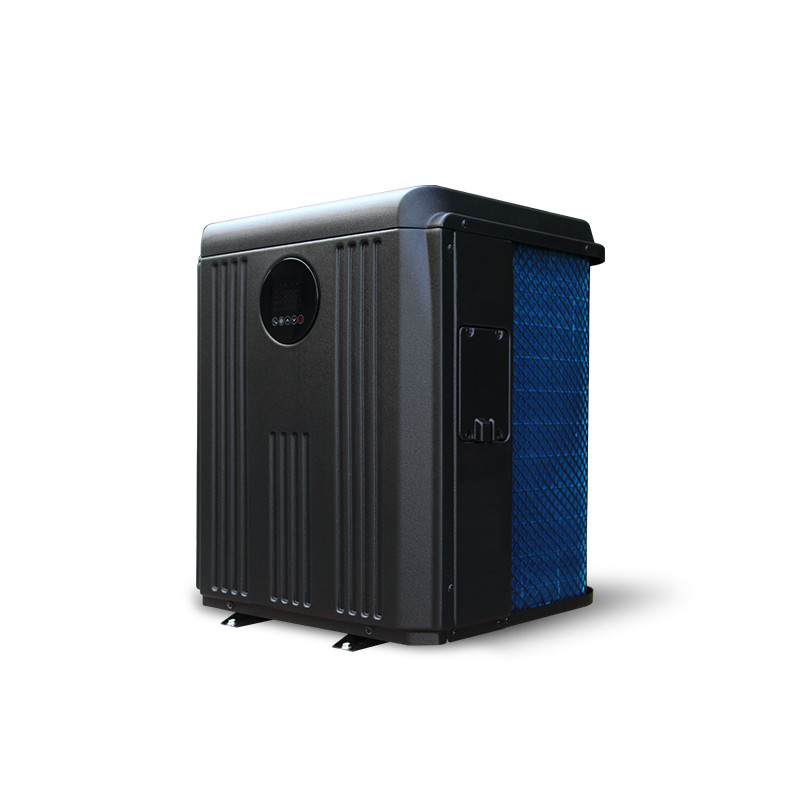

Vertical Air Discharge Design
Engineered with innovative top air outlet design, our heat pump ensures completely unobstructed airflow and enables space-saving installation configurations. This vertical discharge system is especially suitable for narrow outdoor areas and tight installation spaces, maximizing installation flexibility while maintaining optimal heat exchange efficiency and performance.
Ultra-Quiet Performance - 39dB(A)
Our advanced acoustic engineering minimizes operational noise to just 39dB(A), creating a more pleasant and undisturbed poolside environment. This whisper-quiet operation ensures your pool heating system won't interfere with relaxation, conversations, or neighborhood tranquility, making it ideal for residential installations and noise-sensitive areas.
Built-in WiFi Control Technology
Integrated WiFi connectivity enables comprehensive remote monitoring and control via dedicated mobile applications, offering ultimate convenience and intelligent temperature management. Users can adjust settings, create schedules, monitor energy consumption, and receive notifications from anywhere, ensuring optimal pool heating management with modern smart technology convenience.
Quality Assurance
Solareast attaches great importance to quality assurance. From R&D and design, to raw material procurement, to manufacturing and testing, we strictly follow high standards. With professional team and advanced equipment, we ensure that each heat pump has excellent performance and reliable quality. Guided by customer needs, we constantly optimize the quality control system to provide users with high-quality, durable heat pump products, so that warmth and comfort together.
Automatic Equipment
Solareast's factory is equipped with advanced automated equipment. The automatic laser cutting line cuts the material precisely, the automatic powder coating line gives the product a beautiful and durable coating, the automatic high-pressure foaming line ensures good heat preservation, and the automatic bending line realizes precise molding. All these equipments work together to ensure stable product quality and efficiently produce high quality heat pumps to meet the market demand, demonstrating the company's strong manufacturing capabilities.
About Solareast Heat Pump Ltd
Solareast Heat Pump Ltd is a leading manufacturer and innovator in energy-efficient heating solutions, specializing in advanced pool heat pumps, air source heat pumps, and smart HVAC systems for residential, commercial, and industrial applications. With cutting-edge inverter technology, IoT connectivity, and eco-friendly refrigerants including R290 and R32, our products deliver exceptional energy efficiency with COP ratings up to 16, ultra-quiet operation, and intelligent automation features. Committed to environmental responsibility and sustainable innovation, Solareast combines superior engineering, rigorous quality standards, and comprehensive global service to provide customers worldwide with reliable, cost-effective heating solutions that reduce both energy consumption and environmental impact.
Frequently Asked Questions (FAQ)
Q: How does R32 refrigerant compare to R410A in terms of performance and environment?
A: R32 offers approximately 10% higher heating efficiency and 68% lower Global Warming Potential than R410A. This means better performance with significantly reduced environmental impact, making it the ideal choice for eco-conscious pool owners seeking optimal efficiency.
Q: What pool size is suitable for each capacity in the 7-35kW range?
A: Generally: 7-12kW suits small pools (25-50m³), 12-20kW for medium pools (50-85m³), 20-28kW for large pools (85-120m³), and 28-35kW for extra-large pools (120-150m³). Pool insulation, climate, and desired heating speed also affect sizing requirements.
Q: What are the advantages of vertical air discharge design?
A: Vertical air discharge provides unobstructed airflow, enables installation in narrow spaces, prevents air recirculation, allows flexible positioning near walls or fences, and maintains optimal heat exchange efficiency. It's especially beneficial for compact outdoor areas with limited space.
Q: How quiet is 39dB(A) during operation?
A: 39dB(A) is extremely quiet - comparable to a quiet library or soft whisper. It's significantly quieter than normal conversation (60dB) and most household appliances, ensuring your heat pump operates virtually unnoticed during pool heating.
